SKU: EM2645
1 - Product Title

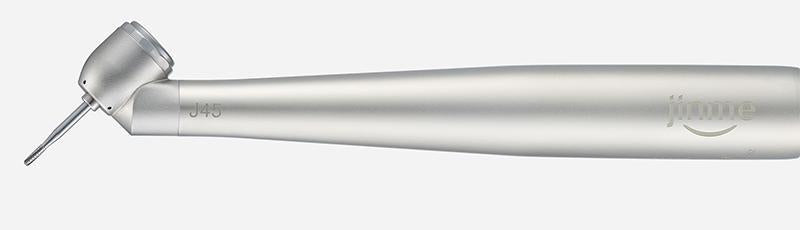

Jinme® J45-SU High Speed 45 Degree Handpiece Push Button
2 - Description

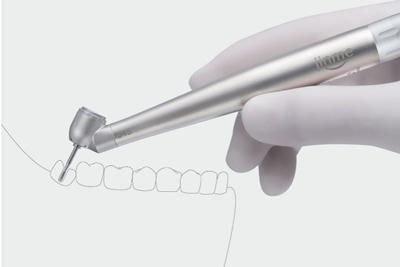

Surgical High Speed Handpiece for minimally invasive tooth removal 45 Degree angle
Features of J45-SU high speed air driven dental handpiece
1. Rear exhaust design
The J45-SU dental handpiece uses a rear exhaust design. The exhaust port is designed on the back of head with 100% no air blowing on the front, thus avoiding any potential postoperative complications. This handpiece is especially suitable for bone removal, including the cutting and separating of deep, impacted teeth.
2. Slighter vibration, effectively preventing the risk of medical accident caused by bur breaking
J45-SU dental handpiece vibrates in very small degree during high speed rotation, effectively avoiding bur breaking, thus avoiding the risk of surgical complications
3. The rotational speed is stable and there is no high pressure air flow under the handpiece head. That means the dental handpiece can be used for minimally invasive tooth removal, and is also commonly used for more extensive procedures
4. The use of an anti-suction system can prevent the suction of blood, virus and skin particles caused by negative pressure produced when handpiece stops operating, so that cross infection can be avoided. This also better protect the dental cartridge to avoid the damage of foreign matter to bearing, largely improving the service life of handpiece.
Additional source information
4 - Hole Midwest fitting direct to tubing
Further source information
Technical parameters
Working air pressure: 0.25~0.3MPa
Joint: 4 holes
Rotational speed: 330~420 krpm/min
Dimensions of handpiece head: Ø11.25mm × H13.5mm
Suitable bur: Handle diameter 1.590~1.600mm, Length 25mm
Spray mode: Single-point spray
Bearings: German bearings
Mode of bur changing: Push-button
Sterilization: No more than 135oC high temperature and high pressure steam sterilization
3 - Features
- Surgical High Speed Handpiece for minimally invasive tooth removal 45 Degree angle
- Features of J45-SU high speed air driven dental handpiece
- 3. The rotational speed is stable and there is no high pressure air flow under the handpiece head. That means the dental handpiece can be used for minimally invasive tooth removal, and is also commonly used for more extensive procedures
- 4 - Hole Midwest fitting direct to tubing
4 - Technical Information
| Specification |
Details |
| SKU |
EM2645 |
| Product Type |
Handpieces & Couplings |
5 - Applications
- 3. The rotational speed is stable and there is no high pressure air flow under the handpiece head. That means the dental handpiece can be used for minimally invasive tooth removal, and is also commonly used for more extensive procedures
6 - Installation / Compatibility
Confirm the exact model, part number, dimensions and connection against the existing equipment before ordering.
