SKU: EM2670
1 - Product Title

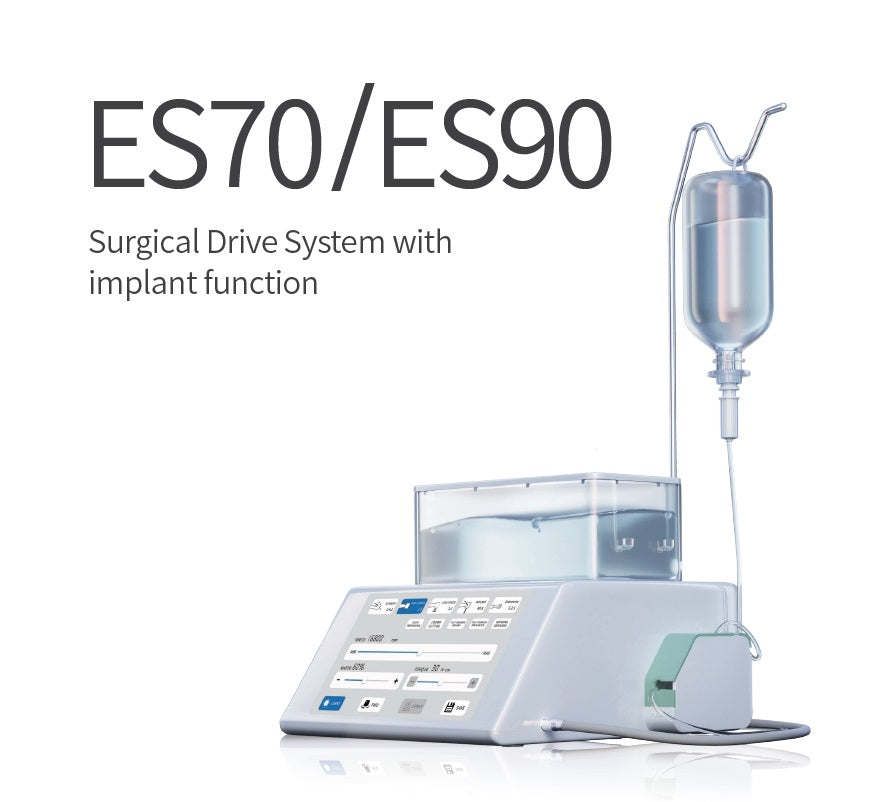

Jinme ES70/90 Surgical implant/Restoration Centre
2 - Description
Intelligent internal algorithm
Automatic Selection
Industrial Grade Chips
Instructions respond immediately
Your heart is at your fingertips
Efficiently execute your every clinical need
Extraction ( 1:4.2 ) Incuded
Implant ( 40:1 ) Included
Aesthetic restoration ( 1:5 ) Red Band Included
Low Speed (1:1) Included
Paired with
1:4.2 elevation handpiece
Paired with
1:5 speed increasing handpiece
Paired with
40:1 Reduction handpiece
Paired with
1:1 Contra angle handpiece
ALL 4 HANDPIECES INCLUDED
Additional source information
Main system size
Length 260mm * width 240mm * height 110mm
Extract a Tooth/Restorative/Tooth Polishing/Caries Removal/ Implant/Pulp Opening
Further source information
Input voltage 220VAC Allowed voltage fluctuation ±10％ Rated current 0.1A-0.8A Supply frequencies 50Hz/60Hz Power fuse 2*250V-T1.6AH Maximum power consumption 180VA Motor rated working voltage DC32V Motor rotation mode forward/reverse rotation Motor rotation speed 0 r/min～40,000 r/min Size of motor Ф21.7mm x height70.5mm Sterilization method High temperature and high pressure steam sterilization at 134° for 5 minutes Hanging maximum allowed load ≦1.5KG
3 - Features
- Intelligent internal algorithm
- Automatic Selection
- Industrial Grade Chips
- Instructions respond immediatelyYour heart is at your fingertipsEfficiently execute your every clinical need
- Extraction ( 1:4.2 ) Incuded
- Implant ( 40:1 ) Included
- Aesthetic restoration ( 1:5 ) Red Band Included
- Low Speed (1:1) Included
- Paired with
- 1:4.2 elevation handpiece
4 - Technical Information
| Specification |
Details |
| SKU |
EM2670 |
| Manufacturer / Brand |
Jinme |
| Product Type |
Scaler Tips, Inserts & Accessories |
5 - Applications
- Dental engineering servicing, replacement or installation work involving scaler tips, inserts & accessories.
6 - Installation / Compatibility
Confirm the exact model, part number, dimensions and connection against the existing equipment before ordering.
