Description
SKU: EM2599
1 - Product Title

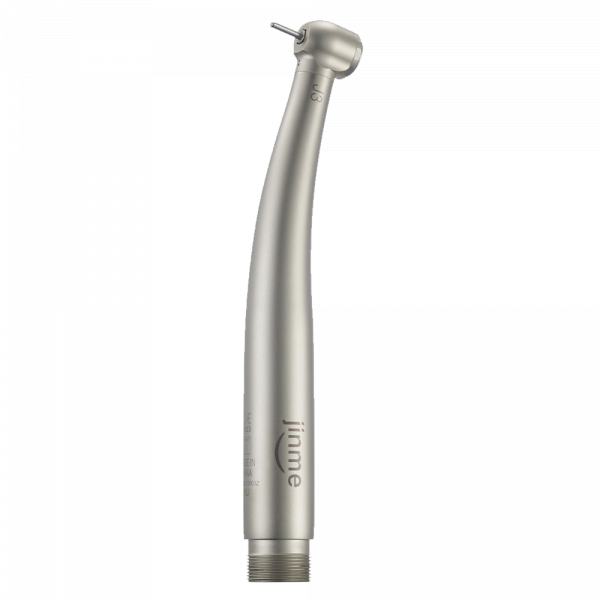

Jinme J3-SU High Speed Dental Turbine, Zero Reverse Water Flow
2 - Description
Fitted with Negative Pressure Anti suck back System
Fits directly to any 4 hole hose
low noise, Minimal vibration , strong cutting power and long durability

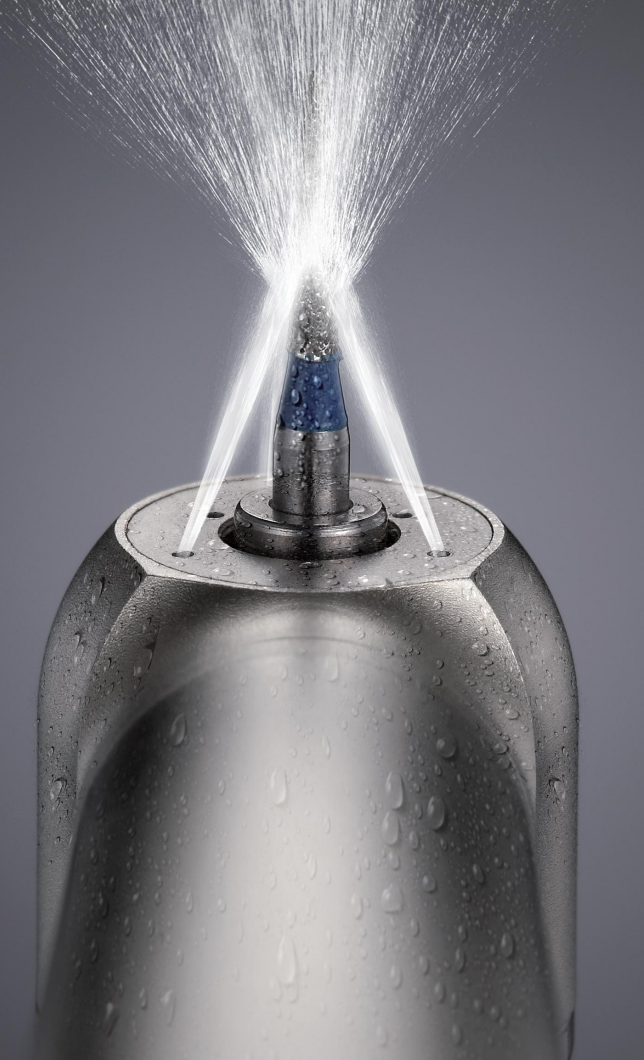

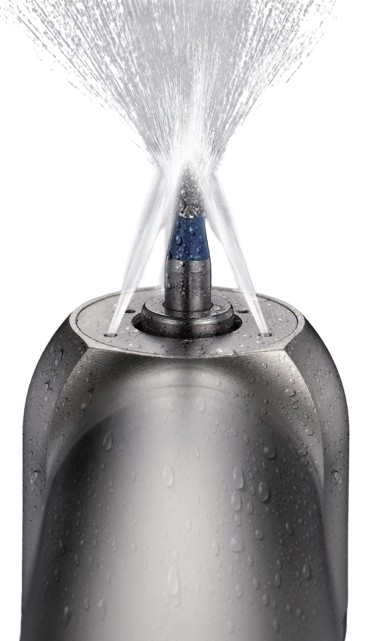

Excellent cooling effect with triple water spray
1. Constant pressure device inside prolongs the lifetime of handpiece
2. 100% cross infection prevention
3. Easier maintenance
J3-SU High Speed Dental Handpiece, Dental Turbine is equipped with an open dental cartridge
It uses a push-button bur changing mode
Features of the J3 high speed dental handpiece
1. Zero Suckback Reducing Cross Infection
2. Bur locking device-
The J3-SU dental handpiece is equipped with JINME's independently researched and developed auto-chuck push button spindle
it has a precise miniature spring placed inside the spindle and it exerts a pre-tightening force on the chuck to ensure the bur is tight and secure to the handpiece
3. High Quality bearings manufactured in Germany
The J3-SU dental handpiece uses high-precision bearings
The bearings are designed with special angles and they can generate a centripetal thrust force to make the handpiece operation more stable and much quieter.
This also contributes to a greater torque.
Additional source information
Description
The J3-SU high speed dental handpiece uses a push-button bur and standard head. It is also equipped with an interior constant pressure device, which effectively prevents damage caused by excessive air pressure during operation.
Features of J3-SU dental handpiece
-
Constant pressure device inside prolongs the lifetime of handpiece.
It is equipped with an interior constant pressure device inside which effectively prevents damage caused by excessive air pressure during operation. When the air pressure exceeds 0.35MPa, the device will automatically limit the maximum pressure to 0.35MPa. This prevents damage to the bearings caused by an unstable air pressure, and thus, prolongs the handpiece service life.
-
Fast stop system ensures the safety of patients.
Most handpieces keep an inertial rotation for 3-4s after closing air pressure. Users should ensure the handpiece has stopped completely before removing it from the patient's mouth. The J3-SU can stop within 2 seconds after cutting off the air pressure, which shortens the waiting time for the hand piece to stop operation, thus preventing any damage.
-
Low noise improves treatment efficiency.
Traditionally, handpiece noise in competitor products has been at more than 70dB, which leads to an uncomfortable treatment environment and treatment effect. To solve that issue, the J3-Su dental handpiece features noise levels of less than 60dB in order to ensure a comfortable treatment environment and safe treatment effect.
-
JINME independently researched and developed 'auto-chuck push button spindle'
(Patent number: CN203263556U)
A precise miniature spring is equipped inside the spindle and with the high speed hand piece rotation, it exerts a pre-tightening force on the chuck to ensure that the bur is as tight as possible, thus ensuring it remains securely attached.
After over 20,000 continuous pressing tests, the holding ability of handpiece spindle only decreases by 2%. The lifetime can be more than 3 years.
-

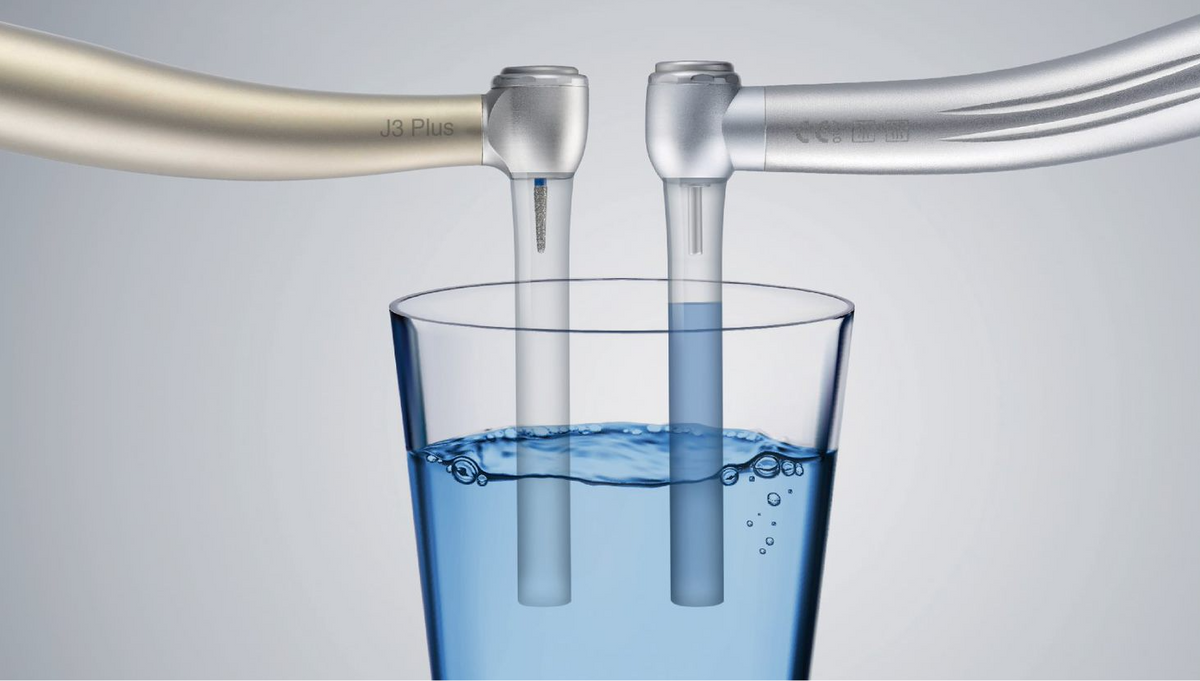

Zero suction system prevents dust and impurities into handpiece.
The use of anti-suction system can prevent the suction of blood, virus and skin particles caused by the negative pressure produced when handpiece stops operating, thus preventing any risk of cross infection. This also better protects the dental cartridge against damage caused by foreign materials, largely improving the service life of the handpiece.
Further source information
Technical parameters
Working air pressure: 0.2~0.3MPa
Rotational speed: 350(krpm) ~420(krpm)
Torque force: 0.4(N) ~0.45 (N)
Water flowrate: 90~110ml/min
Working water pressure: 0.2~0.3MPa
Noise: ≤60dB
Diameter of handpiece head: 11.26MM
3 - Features
- Fitted with Negative Pressure Anti suck back System
- Fits directly to any 4 hole hose
- low noise, Minimal vibration , strong cutting power and long durability
- Excellent cooling effect with triple water spray
- 1. Constant pressure device inside prolongs the lifetime of handpiece2. 100% cross infection prevention3. Easier maintenance
- J3-SU High Speed Dental Handpiece, Dental Turbine is equipped with an open dental cartridge
- It uses a push-button bur changing mode
- Features of the J3 high speed dental handpiece
- 1. Zero Suckback Reducing Cross Infection
- 2. Bur locking device-
4 - Technical Information
| Specification | Details |
|---|---|
| SKU | EM2599 |
| Manufacturer / Brand | Jinme |
| Product Type | Handpieces & Couplings |
| Compatibility | 4 Hole Midwest |
| Product Family | Handles, Handpieces and Coupling |
5 - Applications
- Dental engineering servicing, replacement or installation work involving handpieces & couplings.
6 - Installation / Compatibility
- Source-listed compatibility: 4 Hole Midwest
- Fits directly to any 4 hole hose
Confirm the exact model, part number, dimensions and connection against the existing equipment before ordering.
